EA401 - Red, right angle, quad-level, mini LED. Lens diffused. Max.luminous intensity at 10mA 12.5mcd. Typ. forward voltage at 20mA 2.0V. Yellow, right angle, quad-level, mini LED. Lens diffused. Max.luminous intensity at 10mA 5.0mcd. Typ. forward voltage at 20mA 2.1V. Green, right angle, quad-level, mini LED. Lens diffused. Max.luminous intensity at 10mA 5.0mcd. Typ. forward voltage at 20mA 2.2V. Ultra bright green, right angle, quad LED. Lens diffused. Max.luminous intensity at 20mA: 60.0mcd. Typ. forward voltage at 20mA 2.2V. Ultra bright red, right angle, quad LED. Lens diffused. Max.luminous intensity at 20mA: 300.0mcd. Typ. forward voltage at 20mA 1.85V. Red & green, right angle, quad-level, mini LED. Lens white diffused. Max.luminous intensity at 10mA: 32.0mcd(red), 32.0mcd(green). Typ. forward voltage at 20mA: 2.0V(red), 2.2V(green). Green & yellow, right angle, quad-level, mini LED. Lens white diffused. Max.luminous intensity at 10mA: 32.0mcd(green), 20.0mcd(yellow). Typ. forward voltage at 20mA: 2.2V(green), 2.2V(yellow). Red, right angle, tri-level, T-1, LED. Lens diffused. Max.luminous intensity at 20mA 50mcd. Typ. forward voltage at 20mA 2.0V. Orange side viewing LED. Lens translucent. Typ.luminous intensity at 15mA 4.0mcd. Typ. forward voltage at 20mA 2.1V. Green side viewing LED. Lens translucent. Typ.luminous intensity at 15mA 4.0mcd. Typ. forward voltage at 20mA 2.1V. Ultra bright red, right angle, T-1 LED. Lens translucent. Max.luminous intensity at 20mA 500mcd. Typ. forward voltage at 20mA 1.85V.

EA401_8299508.PDF Datasheet

Part No.

EA401 EA404 EA406 EA432 EA430 EA444GR EA444GY EA331 E109 E111 EA100

Description

Red, right angle, quad-level, mini LED. Lens diffused. Max.luminous intensity at 10mA 12.5mcd. Typ. forward voltage at 20mA 2.0V.
Yellow, right angle, quad-level, mini LED. Lens diffused. Max.luminous intensity at 10mA 5.0mcd. Typ. forward voltage at 20mA 2.1V.
Green, right angle, quad-level, mini LED. Lens diffused. Max.luminous intensity at 10mA 5.0mcd. Typ. forward voltage at 20mA 2.2V.
Ultra bright green, right angle, quad LED. Lens diffused. Max.luminous intensity at 20mA: 60.0mcd. Typ. forward voltage at 20mA 2.2V.
Ultra bright red, right angle, quad LED. Lens diffused. Max.luminous intensity at 20mA: 300.0mcd. Typ. forward voltage at 20mA 1.85V.
Red & green, right angle, quad-level, mini LED. Lens white diffused. Max.luminous intensity at 10mA: 32.0mcd(red), 32.0mcd(green). Typ. forward voltage at 20mA: 2.0V(red), 2.2V(green).
Green & yellow, right angle, quad-level, mini LED. Lens white diffused. Max.luminous intensity at 10mA: 32.0mcd(green), 20.0mcd(yellow). Typ. forward voltage at 20mA: 2.2V(green), 2.2V(yellow).
Red, right angle, tri-level, T-1, LED. Lens diffused. Max.luminous intensity at 20mA 50mcd. Typ. forward voltage at 20mA 2.0V.

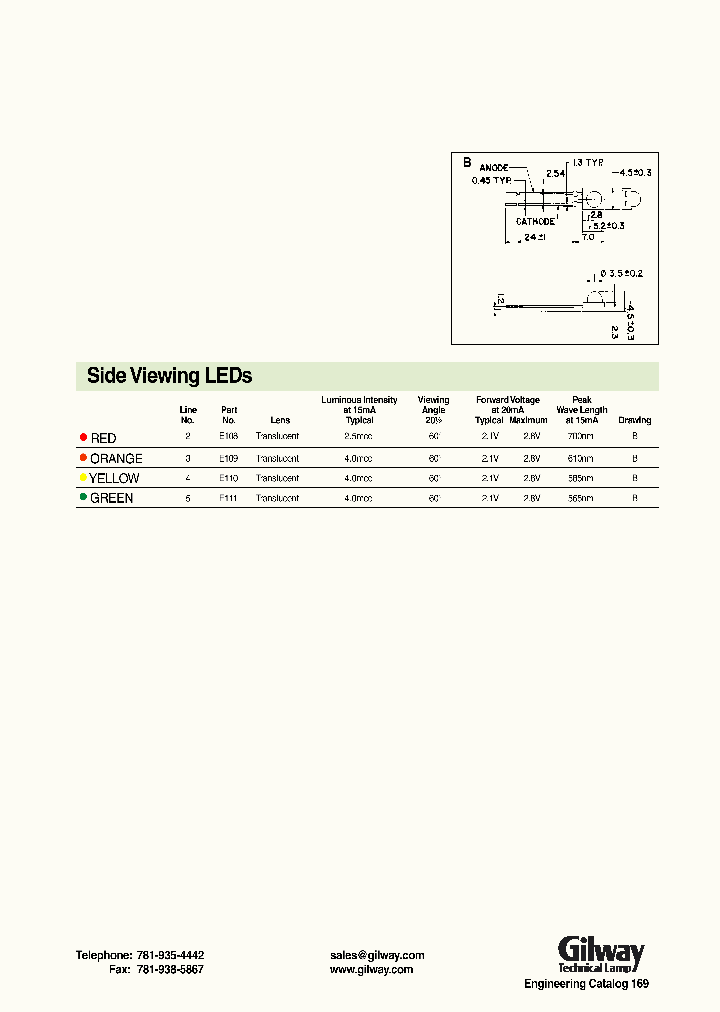

Orange side viewing LED. Lens translucent. Typ.luminous intensity at 15mA 4.0mcd. Typ. forward voltage at 20mA 2.1V.
Green side viewing LED. Lens translucent. Typ.luminous intensity at 15mA 4.0mcd. Typ. forward voltage at 20mA 2.1V.
Ultra bright red, right angle, T-1 LED. Lens translucent. Max.luminous intensity at 20mA 500mcd. Typ. forward voltage at 20mA 1.85V.

File Size

330.21K / 6 Page

Maker

Gilway Technical Lamp

JITONG TECHNOLOGY
(CHINA HK & SZ)
